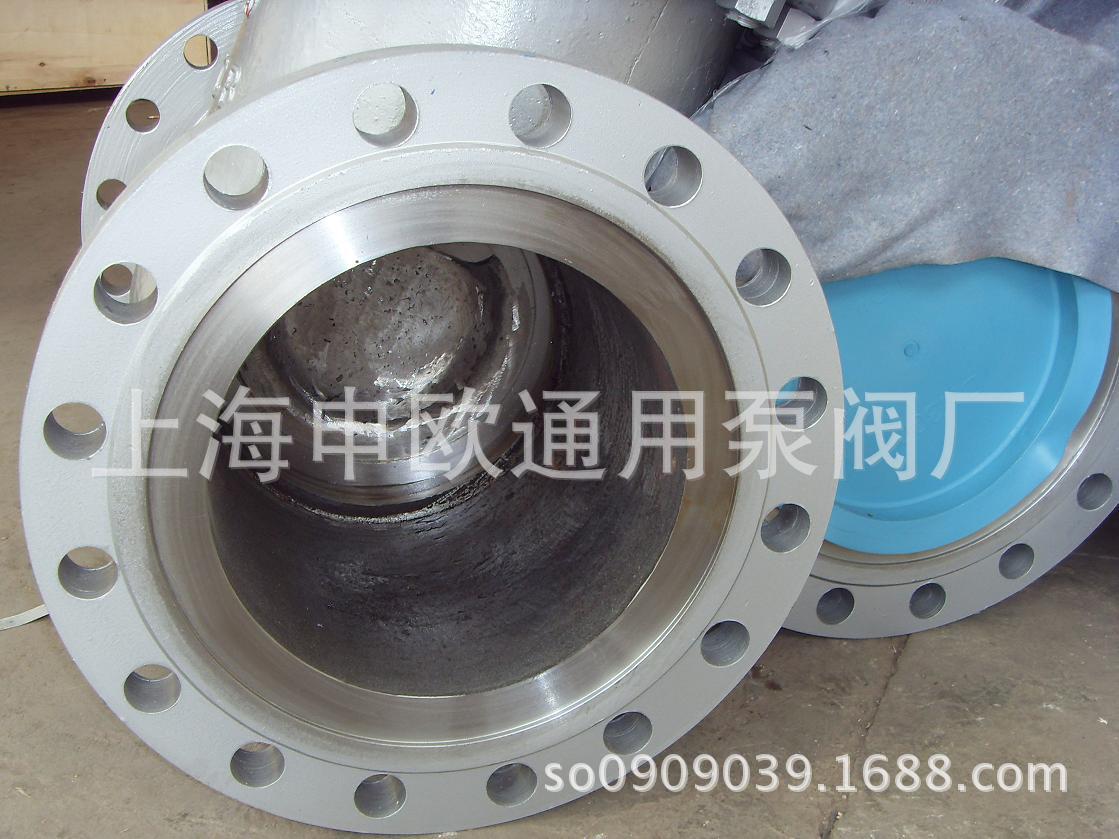

上海申歐通用閥門廠Z41H-16C-DN250法蘭楔式閘閥

Z41H法蘭閘閥

執行標準

1、設計制造按GB12234-89
2、結構長度按GB12221-89
3、法蘭尺寸按JB/T79-94
4、閥門檢查和試驗按GB13927

性能參數

型號公稱壓力
(MPa)實驗壓力工作溫度(℃)適用介質強度水（MPa）密封（水）空氣（MPa）低壓密封空氣（MPa）Z41H-16C
Z41W-16P(R)1.62.41.80.6≤425硝酸類Z41W-25P(R)2.53.82.80.6≤425醋酸類Z41W-40P(R)4.06.04.40.6≤425硝酸類Z41W-60P(R)6.49.67.00.6≤425醋酸類

主要零部件材質

閥體/閥蓋ZGICr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12M02TiZG00Cr17Ni14M02WCB零件名稱ZGICr18Ni9Tit系列ZG00Cr18Ni10系列ZG1Cr18Ni12M02Ti系列ZG00Cr17Ni14M02系列WCB系列閘板ZGICr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12M02TiZG00Cr17Ni14M021Cr13閥桿1Cr18Ni9Ti00Cr18Ni101Cr18Ni12M02Ti00Cr17Ni14M021Cr13填料PTFE編織PTFE編織PTFE編織PTFE編織石墨墊片304L＋PTFE304L＋PTFE316＋PTFE316L＋PTFE石墨壓蓋ZGICr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12M02TiZG00Cr17Ni14M02系列WCB填料壓環1Cr18Ni9Ti00Cr18Ni101Cr18Ni12M02Ti00Cr17Ni14M021Cr13螺栓1Cr17Ni21Cr17Ni21Cr17Ni21Cr17Ni235CrMoA螺母1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni9Ti45

1.6MPa主要連接尺寸

2.5MPa主要連接尺寸

尺寸DN1520253240506580100125150200250300350400450500600Lmm130150160180200250265280300325350400450500550600650700800Hmm1751802102103503583734355006146748181225141516301780205021812599Wmm180180200200200240240280320360360400450500500600720720720

4.0MPa主要連接尺寸

尺寸DN1520253240506580100125150200250300350400Lmm130150160180200250280310350400450550650750850950Hmm1751802102103503583734355006146748181225141516301780Wmm180180200200200240240280320360360400450500500600

6.4MPa主要連接尺寸

尺寸DN1520253240506580100125150200250300350400Lmm170190210230240250280320350400450550650750850950Hmm175180210230350359373435500614674818970114512801450Wmm120120140160200240280320360400400450560640800800

10.0MPa主要連接尺寸

尺寸DN1520253240506580100125150200250Lmm170190210230240250280310350400450550650Hmm175180210230350359373435500614674818970Wmm120120160180240280320360400450560640720

16.0MPa主要連接尺寸

尺寸DN1520253240506580100125150200Lmm170190210230240300340390450525600750Hmm175180210230350359373435500614674818Wmm120120140160200240280320360400400450

尺寸DN1520253240506580100125150200250300350400450500600Lmm130150160180200250265280300325350400450500550600650700800Hmm1751802102103503583734355006146748181225141516301780205021812599Wmm180180200200200240240280320360360400450500500600720720720
